Calculus I - Volumes of Solids of Revolution/Method of Cylinders

Section 6.4 : Volume With Cylinders

5. Use the method of cylinders to determine the volume of the solid obtained by rotating the region bounded by $y = 2x + 1$, $y = 3$ and $x = 4$ about the line $y = 10$.

Show All Steps Hide All Steps

Start Solution

We need to start the problem somewhere so let’s start “simple”.

Knowing what the bounded region looks like will definitely help for most of these types of problems since we need to know how all the curves relate to each other when we go to set up the area formula and we’ll need limits for the integral which the graph will often help with.

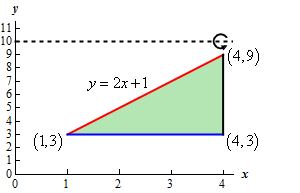

Here is a sketch of the bounded region with the axis of rotation shown.

$A sketch of the bounded region with the axis of rotation shown. The region is a triangle with corners at $\left( {1,3} \right)$, $\left( {4,3} \right)$ and $\left( {4,9} \right)$, bounded above by the line $y = 2x + 1$, below by the line $y = 3$ and on the right by the line $x = 4$, and it is shaded in. A horizontal dashed line at $y = 10$ with a small circular arrow on it marks the axis of rotation.$

Show Step 2

Here is a sketch of the solid of revolution.

$A sketch of the solid of revolution obtained by rotating the region about the line $y = 10$. It is a solid cylinder lying on its side, running from $x = 1$ to $x = 4$, that has been hollowed out from the left end by a cone shaped cavity.$

Here are a couple of sketches of a representative cylinder. The image on the left shows a representative cylinder with the front half of the solid cut away and the image on the right shows a representative cylinder with a “wire frame” of the back half of the solid (i.e. the curves representing the edges of the of the back half of the solid).

$A sketch of the solid of revolution with a representative cylinder drawn in and the front half of the solid cut away so that the cylinder can be seen. The cylinder is centered on the dashed line $y = 10$ and lies inside the solid.$ $A sketch of the solid of revolution with a representative cylinder drawn in and only a “wire frame” of the back half of the solid shown, so just the curves that form the edges of the solid are drawn. The cylinder is centered on the dashed line $y = 10$ and lies inside the solid.$

Show Step 3

We now need to find a formula for the surface area of the cylinder. Because we are using cylinders that are centered on a horizontal axis (i.e. parallel to the $x$-axis) we know that the area formula will need to be in terms of $y$. Therefore, we’ll need to rewrite the equations of the curves in terms of $y$.

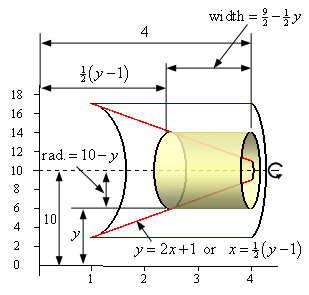

Here is another sketch of a representative cylinder with all of the various quantities we need put into it.

$A sketch of a representative cylinder with all of the quantities needed put in. The cylinder is centered on the dashed line $y = 10$ with its lower edge at some $y$, and the distance from the axis of rotation down to that edge is labeled rad. = $10 - y$. The horizontal distance from the line $x = \frac{1}{2}\left( {y - 1} \right)$ out to $x = 4$ is labeled width = $\frac{9}{2} - \frac{1}{2}y$.$

From the sketch we can see the cylinder is centered on the line $y = 10$ and the lower edge of the cylinder is at some $y$.

The radius of the cylinder is just the distance from the axis of rotation to the lower edge of the cylinder (i.e. $10 - y$).

The right edge of the cylinder is on the curve defining the right portion of the solid and is a distance of 4 from the $y$-axis. The left edge of the cylinder is on the curve defining the left portion of the solid and is a distance of $\frac{1}{2}\left( {y - 1} \right)$ from the $y$-axis. The width then is the difference of these two.

So, the radius and width of the cylinder are,

\[{\mbox{Radius}} = 10 - y\hspace{0.25in}\hspace{0.25in}{\mbox{Width}} = 4 - \frac{1}{2}\left( {y - 1} \right) = \frac{9}{2} - \frac{1}{2}y\]

The area of the cylinder is then,

\[A\left( y \right) = 2\pi \left( {{\mbox{Radius}}} \right)\left( {{\mbox{Height}}} \right) = 2\pi \left( {10 - y} \right)\left( {\frac{9}{2} - \frac{1}{2}y} \right) = 2\pi \left( {45 - \frac{{19}}{2}y + \frac{1}{2}{y^2}} \right)\]

Show Step 4

The final step is to then set up the integral for the volume and evaluate it.

From the graph from Step 1 we can see that the “first” cylinder in the solid would occur at $y = 3$ and the “last” cylinder would occur at $y = 9$. Our limits are then : $3 \le y \le 9$.

The volume is then,

\[V = \int_{3}^{9}{{2\pi \left( {45 - \frac{{19}}{2}y + \frac{1}{2}{y^2}} \right)\,dy}} = 2\left. {\pi \left( {45y - \frac{{19}}{4}{y^2} + \frac{1}{6}{y^3}} \right)} \right|_3^9 = \require{bbox} \bbox[2pt,border:1px solid black]{{90\pi }}\]
