Section 1-5 : Functions of Several Variables

8. Identify and sketch the traces for the following function.

\[2x - 3y + {z^2} = 1\]

Show All Steps Hide All Steps

Start Solution

We have two traces. One we get by plugging \(x = a\) into the equation and the other we get by plugging \(y = b\) into the equation. Here is what we get for each of these.

\[\begin{align*}x = a: & \hspace{0.25in}2a - 3y + {z^2} = 1 & \to \hspace{0.25in}y & = \frac{1}{3}{z^2} + \frac{{2a - 1}}{3}\\ y = b: & \hspace{0.25in}2x - 3b + {z^2} = 1 & \to \hspace{0.25in}x & = - \frac{1}{2}{z^2} + \frac{{3b + 1}}{2}\end{align*}\] Show Step 2

Okay, we’re now into a realm that many students have issues with initially. We no longer have equations in terms of \(x\) and \(y\). Instead we have one equation in terms of \(x\) and \(z\) and another in terms of \(y\) and \(z\).

Do not get excited about this! They work the same way that equations in terms of \(x\) and \(y\) work! The only difference is that we need to make a decision on which variable will be the horizontal axis variable and which variable will be the vertical axis variable.

Just because we have an \(x\) doesn’t mean that it must be the horizontal axis and just because we have a \(y\) doesn’t mean that it must be the vertical axis! We set up the axis variables in a way that will be convenient for us.

In this case since both equation have a \(z\) in them and it is squared we’ll let \(z\) be the horizontal axis variable for both of the equations.

So, given that convention for the axis variables this means that for the \(x = a\) trace we’ll have a parabola that opens upwards with vertex at \(\left( {0,\frac{{2a - 1}}{3}} \right)\) and for the \(y = b\) trace we’ll have a parabola that opens downwards with vertex at \(\left( {0,\frac{{3b + 1}}{2}} \right)\).

Show Step 3

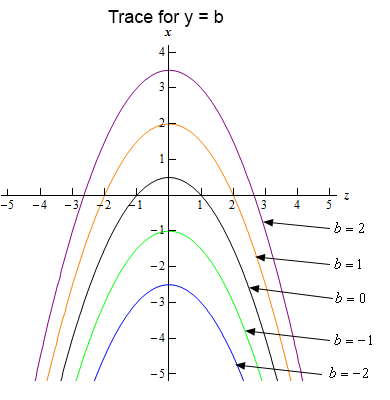

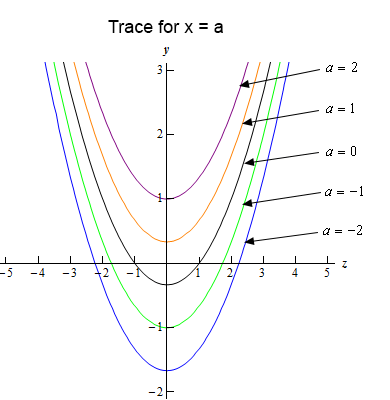

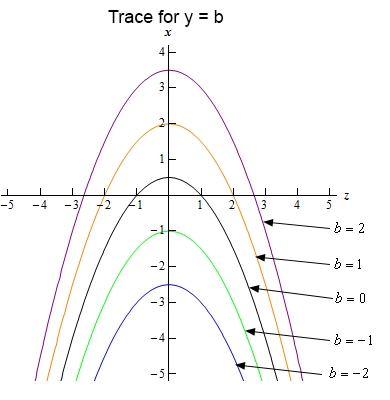

Below is a sketch for each of the traces.
